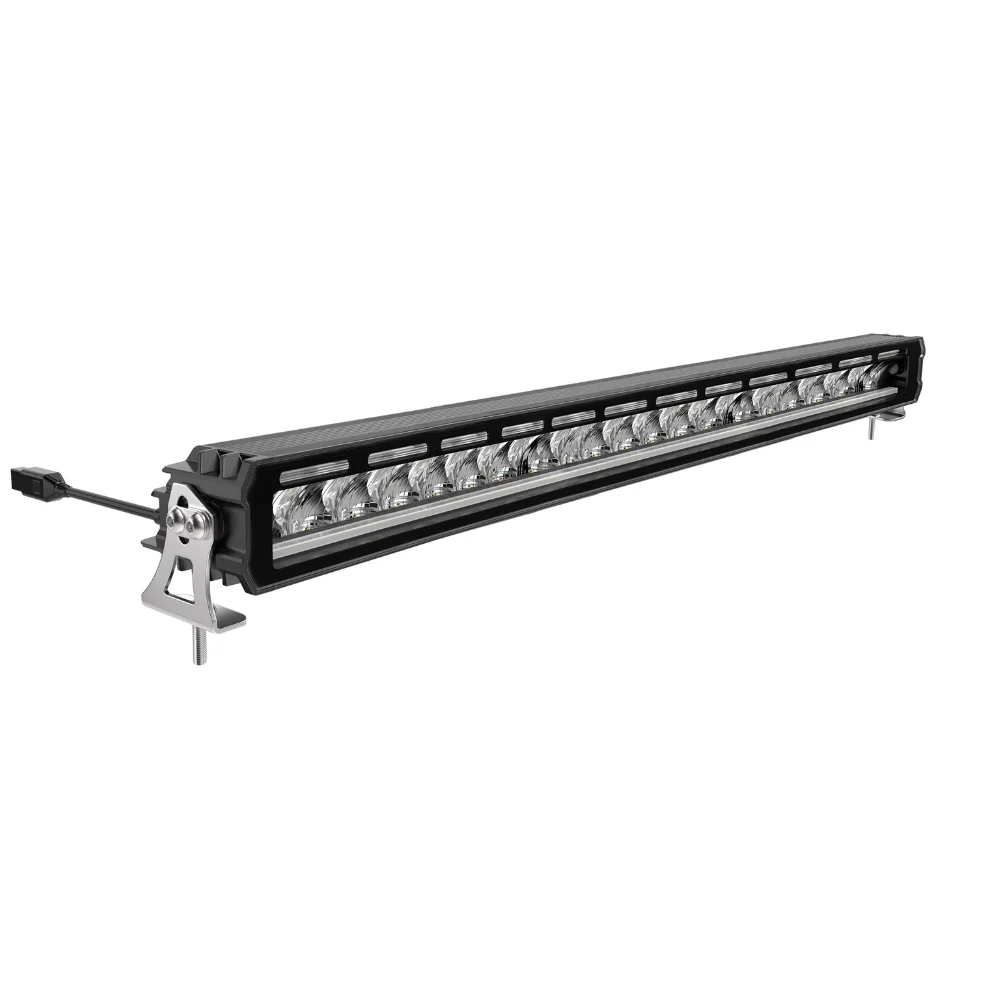

Adventure 20" LED Driving Light Bar – 120W, 9600lm, Spot Beam with Integrated Warning Light, ECE Approved

The Adventure 20" LED Driving Light Bar is a powerful, multi-functional lighting solution designed for trucks, 4x4s, recovery vehicles and off-road applications requiring both long-range visibility and integrated warning capability. Delivering up to 9,600 lumens from 120W output, it features a focused spot beam with an impressive reach of over 750 metres (1 lux), making it ideal for night driving and demanding working environments.

This advanced unit combines driving light, position light and warning light functions in one compact design, offering maximum versatility. Fully ECE approved (R10, R65, R148 and R149) and CISPR25 Class 3 compliant, it ensures reliable, road-legal and interference-free performance. Built with a durable aluminium alloy housing, polycarbonate lens and stainless steel mounting hardware, and rated IP67/IP6K9K, it is engineered to withstand harsh conditions and extreme environments. Supplied with a pre-wired cable for easy installation, this LED light bar provides a robust, high-performance and professional solution for modern vehicle lighting.

Main features:

• 9600 Lumens
• 10-30V
• 120W (Driving: 12 LEDs x 10W, Position: 108 LEDs x 0.1W, Warning: 80 LEDs x 0.5W)
• Light Distance: 1lx@757m, 0.25lx@1514m
• Polycarbonate Lens
• Aluminium Alloy Housing
• 304 Stainless Steel / M10 Bolt
• Work Lamp/Spot Beam

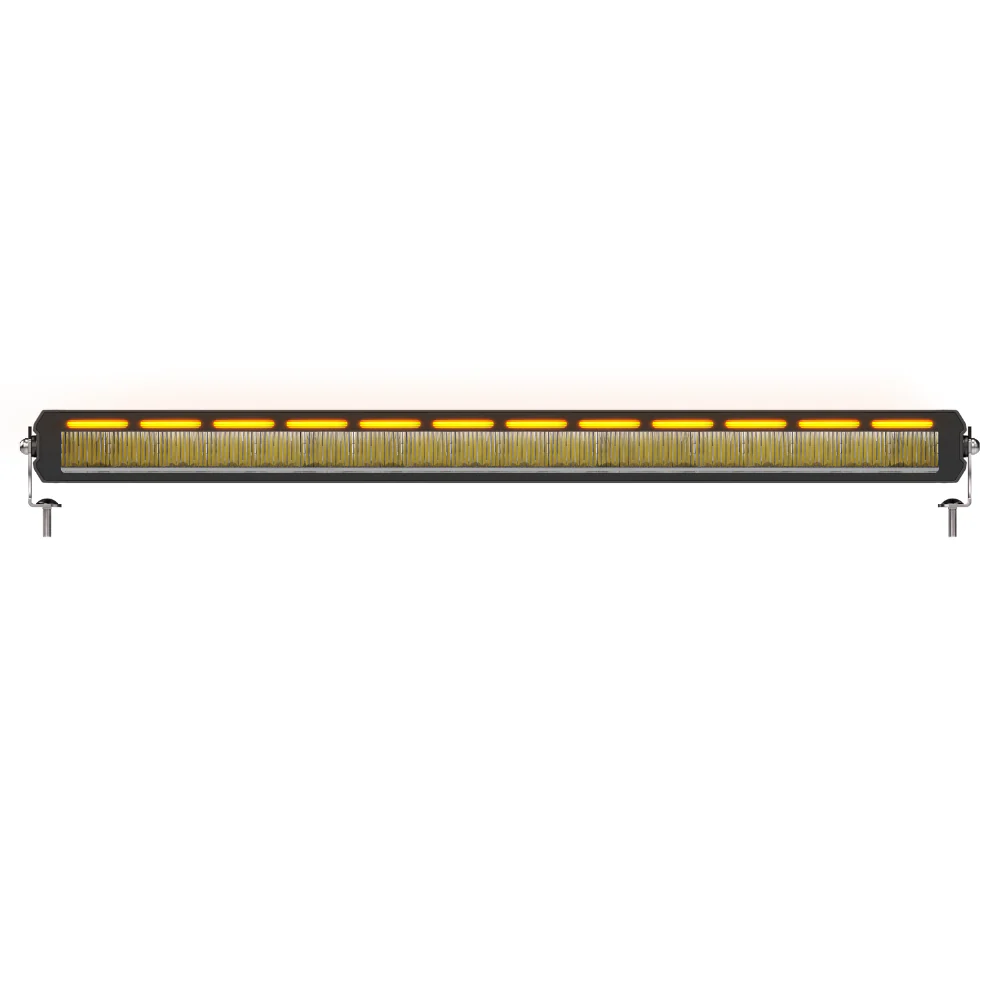

• Warning Lamp
• 530mm Cable
• IP67/IP6K9K
• ECE Reg 10/ Reg 65/ Reg 148/ Reg 149
• CISPR25 Class3
• Dimensions: 587mm*66mm*91mm
• Operating Temperatures: -40C to +65C
