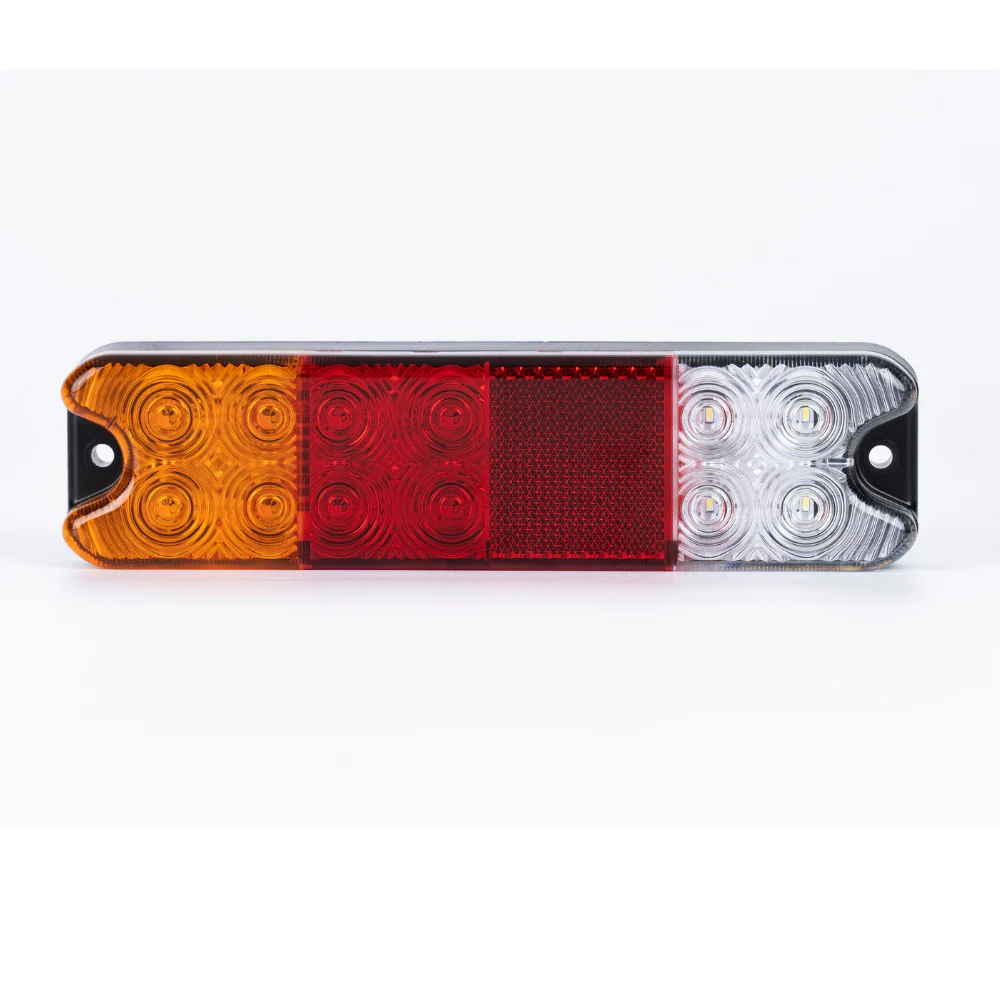

Explorer CA 7074 8" LED Rear Combination Lamp – Stop, Tail, Indicator & Reverse, 12/24V

The CA 7074 8" LED Rear Combination Lamp is a compact and durable lighting solution designed for trailers, plant machinery and commercial vehicles. Combining stop, tail, indicator and reverse functions in one unit, it provides clear, reliable illumination to enhance safety and visibility in all operating conditions. Equipped with 12 high-efficiency SMD LEDs, it delivers bright, consistent output while maintaining low power consumption across 12/24V systems.

Built with a robust ABS housing and impact-resistant polycarbonate lens, and sealed using ultrasonic welding, this lamp is engineered for long-lasting performance in demanding environments. Rated IP67 and fully ECE approved (R10, R148, R149), it ensures compliant, road-legal operation. With a secure bolt and nut mounting system and pre-wired cable, the CA 7074 offers a dependable, easy-to-install and professional-grade rear lighting solution for modern vehicle applications.

Main features:

• 12/24V
• 12 SMD LEDs
• S/T: 4 LEDs x 0.5W, DI: 4 LEDs x 0.5W, R: 4 LEDs x 1.0W
• Power@ 12v: S: 0.226A, T: 0.028A, DI: 0.156A, R: 0.202A
• Power@ 24v: S: 0.124A, T: 0.021A, DI: 0.103A, R: 0.111A
• Bolt & Nut Mount (174mm distance)
• Lens: PC (Clear / Red / Amber)
• Body / Housing: ABS
• Cable: 300mm
• Ultrasonic Welding
• Rated IP67
• ECE: Reg 10 / Reg 148 / Reg 149
• Oper. Temp.: -40° to +65°

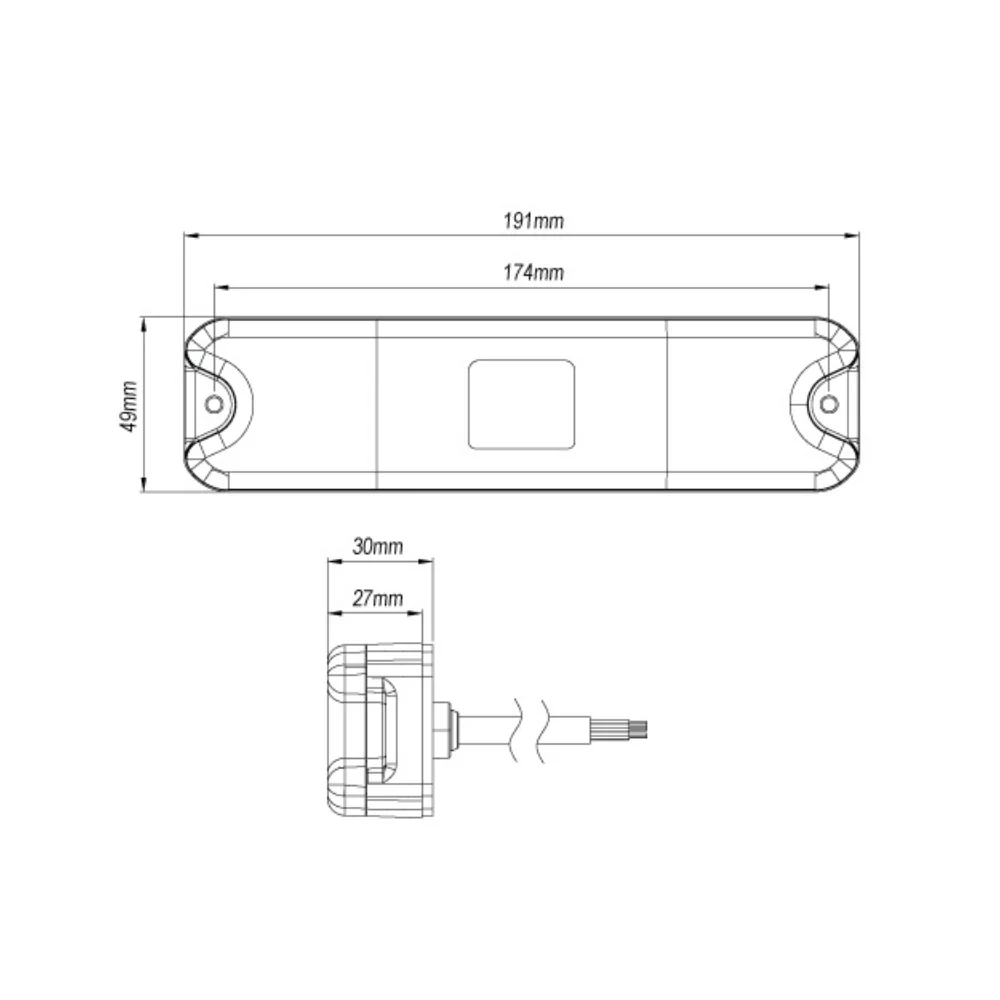

• Dimensions: 191*49.5*30mm
